Dodge Telescoping Take Up Frames

Link belt lc take up frames.

Dodge telescoping take up frames.

Fourboltmountingplate 4b. Telescoping and wide slot take up frames are available in stainless steel. Bearing mounting plate is standard on all dodge telescoping take up frames. Made to provide maintain tension and shaft centers on a variety of belt and chain type conveyors.

Factory lubricated adjustment screw. Rex znt protected screw take up frames. Available options four bolt mounting plate 4b tapped base mounting plate tb weld on frame without mounting feet wf stainless steel ss grease fitting gf top angle take up frame tp. Take up frame capacity is pre engineered to exceed bearing capacity.

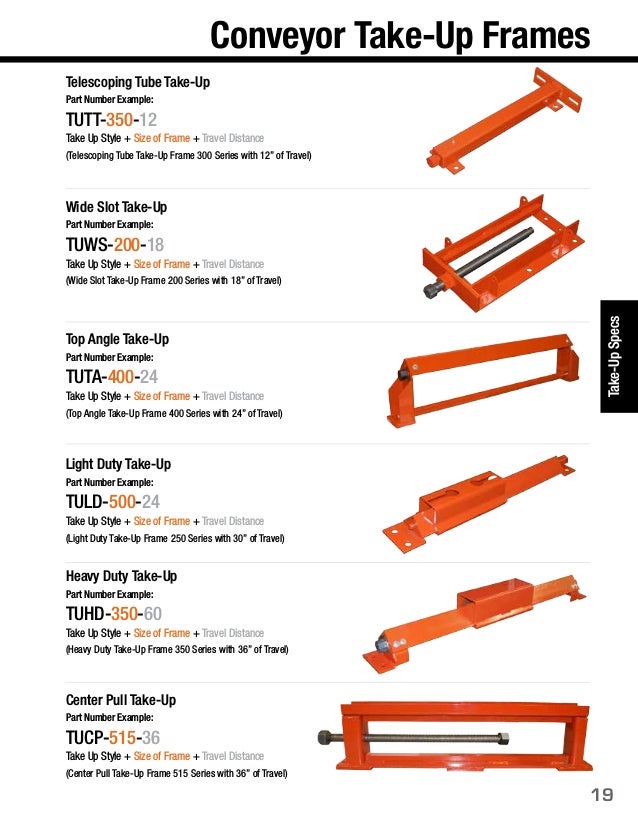

In a center pull take up frame the adjustment pull axis is located in the center of the frame guiding the bearing housing between the two sides of the frame. A side mount frame is similarly configured but rests flat instead allowing it to fit in tighter spaces. ø1 3 8 ø15 diameter 108 length rollers and pulleys. We offer multiple models that cover a majority of conveyor styles and applications including center pull top angle light duty heavy duty telescoping tube and wide slot.

Link belt dslb take up frames hinged top. Take up frames a take up frame eliminates the need for additional take up supports and enables load distribution. Standard take up frame travel from 1 1 2 to 60 take up frames allow for the mounting of dodge ball roller and sleeve bearings. Bearing mounting plate is standard on all dodge telescoping take up frames.

Bearingsdodge telescoping take up frames. Space saving telescoping take up frame quickly mounts to the side of a conveyor. Bolted top angle take up frames protect the threaded rod while allowing for simple bearing removal and replacement. Telescoper takeups feature a sealed telescoping tube design accept standard pillow block bearings and are available in low carbon and stainless steel.

Rex zst center pull spring loaded take up frames. Space saving telescoping take up frame quickly mounts to the side of your conveyor useanystandardballorrollerbearing pillowblock factorypre lubricatedadjustmentscrew internaltake upframescrewisprotected from the surrounding environment bearingmountingplateisstandardonall dodge telescoping take up frames available options. Link belt lhd take up frames. 118 long turning capacity for large pulleys and rollers.

This is done by means of a slot in the unit. Take up frames utilize common styles of bearings with different styles that meet the needs of specific applications. Link belt dshb22500 take up frames. Telescoper takeups solved the problem of freeze up in heavily contaminated environments.

Use any standard ball or roller bearing 2 bolt pillow block. Dodge ts telescoping take up frames. Internal take up frame screw is protected from the surrounding environment. Stock and custom fabricated telescoper brand takeups.

Link belt dsb take up frames hinged top.
